Wiring a JZX90 R154 Manual Swap

Update: Since this post was first published, CTALS has begun offering production versions of the harness detailed here.

JZX90 Series 2 R154 Manual Conversion Harness

JZX100 Series 1 R154 Manual Conversion Harness



JZX90/JZX100 Auto to Manual Swap

As the prices of all JZX Chaser, Cresta and Mark II Toyotas continue to rise, many Australians are turning to factory auto vehicles as a more affordable point of entry and then converting them to a manual gearbox. The most common manual gearboxes to use in conversions for these vehicles are the Toyota factory manual R154 and the Tremec TR56/TR6060 found in Holden/HSV models. In the USA and Canada the Nissan CD009 is a popular option, however, the comparitively high price of this gearbox in the Australian makes it a less common route. The Toyota Supra JZX80 V160 gearbox has also become too expensive for most.

This guide will use common Deutsch connectors and barrel splices to allow the use of a JZX100 R154 manual gearbox in an automatic 1995 JZX90 Chaser Tourer V base car fitted with an A340 transmission originally.

Required Signals

There are four elements of the vehicle function that need to be maintained once the gearbox has been converted:

  1. Start Signal
  2. Reverse Signal
  3. Driven Gear Signal
  4. Speed Signal

These conditions can be satisfied via re-wiring of the main 10-way gearbox plug (below, left) while the speed signal is handled separately (below, right).

Toyota JZX100 Auto Gearbox Connectors

To simplify the wiring setup, and DTM12 connector kit will be used to unify the gearbox and speed sensor connectors into a single point which can be assembled away from the vehicle on the gearbox and connected when the transmission is installed.

1. Start Signal
In order for the vehicle to allow start, the start circuit needs to be completed. This is done by connecting the wires on Position 5 and 6 of the large gearbox connector. On the JZX90 loom here, these are the black and black/white wires.

2. Reverse Signal
The reverse switch is located around halfway down the driver's side of the R154 and has a short pigtail terminated with bullet connectors. This needs to be connected to Ignition (Position 4) and Reverse (Position 8) on the gearbox connector which we will pass through our main DTM12. We are going to replace the bullet terminals with a more reliable and better-sealed DTM2 connector kit.

3. Driven Gear Signal
In order to have the Auto ECU operate engine control functions as if the vehicle was in a higher gear we are also going to simulate a second gear signal. This is done by joining Second (Position 2) and Ignition (Position 4).

4. Speed Sensor
The instrument cluster requires a digital speed input which is provided by the speed sensor located at the rear of the R154 on the driver's side. For this sensor we will simply extend the existing wires - after passing them through the DTM12 connector - and terminate them with a new replacement OEM speed sensor connector. As the R154 being used here already had a digital speed sensor installed a new plug is the only thing required. On R154 gearboxes with a mechanical drive speedometer take-off, a conversion kit from Marlin Crawler can be used to adapt to a digital signal or a complete electronic speed sensor can be swapped in.

Factory Connector Pinout

For this install on a 1995 JZX90 Chaser Tourer V, the wiring pinout for the factory connectors can be seen below. Wiring colours may vary according to the series of JZX, however, the reverse, ignition power and start positions appear to be consistent. Please consult a service manual for your vehicle or use a multimeter and cycle the auto shifter to confirm pin positions if you are unsure.

JZX100 JZX90 Auto Gearbox Pinout

Harness Design

From this information we can design a simply harness to combine all wires into a single junction which will make for a more serviceable solution while also upgrading the brittle factory connectors to something more rugged.

In the design below, the Start Switch wires are joined with a barrel splice to permanently complete this circuit. The Second Gear wire is spliced into the Ignition Power circuit so the ECU considers the vehicle to be in a gear which allows full range of the ignition and fuel wrap. The Ignition Power and Reverse positions are extended out to a length of 500mm and terminated with a DTM2 connector to replace the cheap, bullet terminals that were on the sensor originally and the three Speed Sensor wires were extended out to a length of 700mm and a new factory receptacle installed to allow connection to the sensor body. Click the image below to see the harness in detail.

JZX90 Auto Geabox Conversion Harness

Harness Components

R154 Conversion Harness Overview

The components used to construct this harness were:

  • 1 x Deutsch DTM12 Kit (DTM12)
  • 1 x Deutsch DTM2 Kit (DTM2)
  • 4 x Deutsch Sealing Plug #20 RED (0413-204-2005)
  • 1 x VSS Connector Kit (TVSS3/K)
  • 2 x TE Open Barrel Splice Brass 18-14AWG 0.7-2.5mm2 (63130-2)
  • 20AWG wire in black, green, white, red and yellow
  • 1.5m PMA Braid Grey (F.66.08GR)
  • 4:1 Glue-lined heatshrink (ES2000-NO.4-B7-0-STK)

For the main junction a DTM12 way connector kit was used (in this case the black B-Key version) which combines the 9 wires of the auto gearbox connector and 3 wires of the speed circuit into one simply point of connection. For wires which do not play a role in the manual version of the loom, sealing plugs were used to ensure they are safely protected from shorting etc.

Also hidden in the 4:1 ratio heatshrink prictured below are the start circuit and second gear (green wire to black ingnition power wire) and neutral circuit barrel splices to bridge these connections.

Deutsch DTM12 Plug Kit Installed

The speed sensor wires were extended to a length of 700mm to rear from the bell housing to the rear of the R154 gearbox. The reverse sensor location is approximately 200mm further forward and it has pigtails already so only 500mm of length is required here.

Toyota Speed Sensor Plug and Reverse Gear DTM2

To protect the cable from abrasion and heat in the transmission tunnel the fly leads where surround in PMA braid which was sealed with 3:1 glue-lined heatshrink.

Completed Auto to Manual Conversion Harness

A production version of this harness is now available to order: JZX90 Series 2 R154 Conversion Harness.
Ford Ranger Stealth Winch Install

Ford Ranger Runva Winch Installation Wiring

At Connector-Tech ALS we specialise in harsh environment connector solutions for 4WD applications. A customer recently brought their Ford Ranger to our sales centre where we added the finishing touches to a stealth Runva Winches winch install using a Front Runner winch plate.

Ford Ranger Engine Back


We used cable toughening, boots, heat shrink and Anderson connectors to complete a tidy setup that hides behind the number plate.

Runva Winch Isolator Switch
PMA nylon braid was used to protect the cabling running from the battery to the isolator switch mounted to the radiator support. This switch was included with the Runva Winch kit.

For Ranger Intercooler


The braid continues down to the stealth winch location in front of the intercooler on the Ford Ranger. The polyamide material offers high temperature stability which is critical in close proximity to a heat exchanger.

Ford Ranger Runva Winch Stealth Hidden

The finished winch install is completely hidden behind the number plate when it is in place. A flip up number plate holder will be the next addition.

Associated Products:



Heavy Duty Rectangular Multi-Pole Connectors

Connector-Tech ALS is able to supply a range of heavy duty rectangular multi-pole connectors popular in applications such as trains, cranes, factory equipment etc. The thick aluminium housings are built to withstand a high degree of physical abuse.

The coupling mechanism is a quick release latching system incorporating one or 2 levers. Screw, crimp or spring termination inserts are available in a variety of pin counts and current ratings. These connectors are made to an international standard and the products from various manufacturers are all compatible.

We sell high quality cost effective versions from ILME in Italy and also we can import very low cost, good quality versions from China in a minimum of 100 per part as required.

Beware of Counterfeit Anderson Power Connectors

It has been brought to our attention that there are some counterfeit Anderson Power Products connectors on the market and we would like to warn buyers about the situation. These counterfeit versions are marked Anderson Power but are not manufactured or endorsed by Anderson at all.

Quality and safety are obviously the main concerns for customers. You can be assured that all connectors purchased from Connector-Tech ALS that carry the Anderson Power Products label are indeed genuine.

All of our single pole (Powerpole) housings and contacts are genuine Anderson. All of our grey 2 pole SB housings are genuine Anderson and all of our contacts for the 2 pole SB series are genuine Anderson. We tend to stock the non-grey coloured SB/SY housings in SMH brand as they are lower cost, but equal quality to Anderson and in fact are made by Anderson in their factory with the same materials.

These are clearly labelled "SMH" and we can order in Anderson branded versions if needed. Connector-Tech ALS has very good stocks of genuine Anderson SB and Powerpole connectors at extremely competitive prices. We keep all sizes for both the housings and contacts, including different wire sizes for the same current rated contacts.

Anderson Connectors in a $2.8M hypercar?

The well-known repository of all-things aesthetically pleasing in the automotive world Speedhunters, posted an article on the most recent in long line of 'final versions' of the Pagani Zonda: the Revolucion. You can view the original piece here.

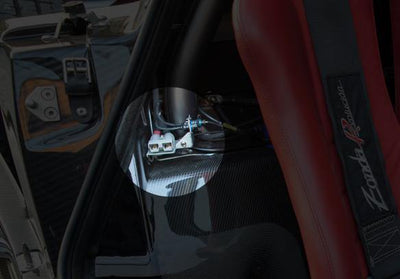

Amongst the typically stunning images from and we noticed something in an interior shot of the USD2.8 million hypercar that immediately grabbed our attention: a $3 Anderson connector.

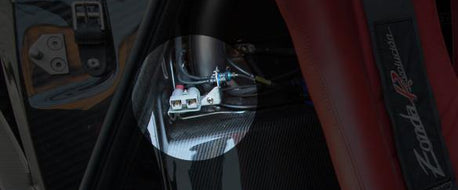

The image above is cropped from the original by to highlight the Anderson SB50 connector. Here the connector is used to quickly attach a trickle charger to the car's battery without the need for the rear cowl to be removed. You can also see a pair of Souriau Motorsport connectors sharing the bespoke aluminium mounting plate.

Even on a money-is-no-object build, the simplicity and reliability of Anderson's ubiquitous connectors make them the best solution for two-pole automotive battery connections.

More information on the Anderson Power Products range of single-pole and multi-pole connectors is available here.
