Anderson plugs, contacts and accessories for 12-volt, caravan, camping, solar and 4X4 applications.
Widest Range Of Anderson Plugs for Sale
At Connector-Tech ALS we proudly offer the largest range of Anderson plugs for sale. Our product lines extend to contacts and accessories compatible with Anderson 12 volt connectors in caravan, camping, solar and 4X4 applications.

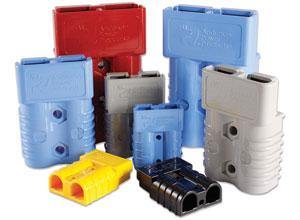

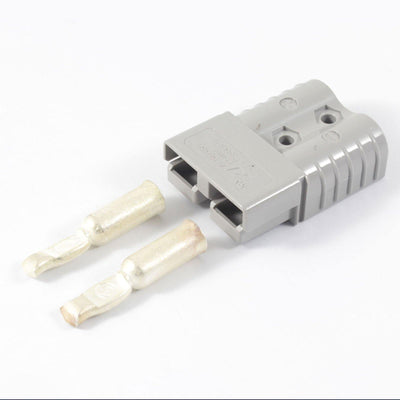

While it can be difficult to find the right Anderson plug or kit to do the job, our size guide can help you work out what you need. The 50 AMP Anderson plug and 50 AMP connector block is the most commonly used connector kit. In both domestic and industrial environments, you'll find a 50A Anderson connector including four-wheel drive applications, boating and automotive. At the other end of the Anderson Power Product range, the SB350 350A Anderson plug is used for high current applications. From forklift chargers to drag cars you will often find a 350A Anderson Connector in use.
These days they are made for the safe and reliable installation of fridges, dual batteries and solar systems in camping, caravan and four-wheel drive applications. However, the typical 50 Amp Anderson plug may not be the best solution for your application.

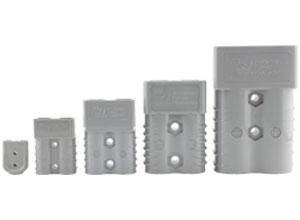

If you’re unsure, read ‘what size Anderson plug’ to understand more about the current ratings, wire sizes, plug sizes or colour options that will help you select the correct product.
We provide the largest selection of Anderson Plugs from Brisbane to Perth and everywhere in between. If you can’t see your required Anderson battery connector, accessory or plug available then contact our friendly technicians. They will assist you to find a compatible solution.

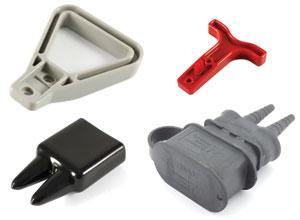

More Popular Anderson Plug Accessories
Our kits are seen widely in both domestic and industry specific circumstances. The 6320G1 Anderson plug is commonly used for Anderson forklift battery connectors.
Our complete Anderson leads are available ready to terminate to popular connectors like the Engel fridge plug. We leave the choice of Waeco vs Engel vs ARB to you.
When ordering a connector it is not always as simple matter of determining between 'male' and 'female' because this can refer to both the housing gender and the contact gender. Many manufacturers offer a given housing gender with both pin and socket. A common example of such confusion occurs in the Deutsch Industrial DT range, where the plug (or male connector) actually contains socket (or female) contacts. For this reason please specify both the contact and housing gender at the time of order.
The IP Rating of a connector or accessory relates to the degree of ingress protection provided by that component. The first digit of the code relates to the degree of protection against access to hazardous parts (conductors etc) and against solid foreign objects. The second digit refers to the degree of protection against the ingress of water. For two examples of this system, consider the most commonly seen IP ratings in our products: IP44 and IP67. IP44 4: Protection from solid objects ≤1mm | 4: Protection against splashing water IP67 6: Protection from dust-sized objects | 7: Protection against immersion in water at depth of 1m for 30mins A complete guide to all IP Ratings is available here.
These terms are used by Phase 3 and ITT Veam on their high-current connectors.The source is considered the half of the connection from which the power is sourced; or the half supplying the electrical power. In an emergency power application, the generator is the source and would be fitted with Panel Source (panel-mount) connectors, a Panel Source Powersafe Box, or Line Source (inline) connectors on pigtails. The drain is the half of the connection which drains the power from the source. In the same emergency power application described above, the network receiving the emergency power supply is the drain and would be fitted with Line Drain connectors, Panel Drain connectors or a Panel Drain Powersafe Box.
We commonly deal with both American Wire Gauge (AWG) and square millimetre (mm2) dimensions as the units used by manufacturers can vary. To convert between measurements please refer this conversion chart.
