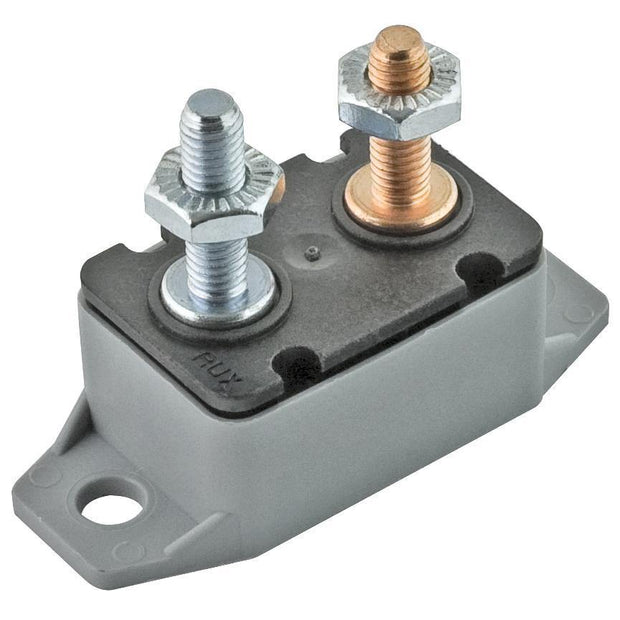

Single Pole Thermal Type Breakers
Applications: Battery chargers, trucks, buses, RVs, trolling motors, etc
Rating: 50A
Interrupt Rating: Main Circuit Protection: 1.5kA @ 12Vdc
Operating Temperature Rating: –40°C to 85°C
Materials: Black UL-Rated thermoplastic body (thermoset for Type II body & buttons). Cover is grey thermoplastic
Torque Rating: 2.7Nm max
Mounting Torque Rating: Plastic cover 1.7Nm
Ingress Protection Rating: IP66 On plastic cover version only (except for terminals)
Compliances: SAE J553; SAE J1171 (ignition protected)
