Deutsch HD30 Kit 29 Way E-Seal RS 0.5/1.5/3.0mm2 IP67 7.5A, 13A, 25A

Regular price
$146.23 Save $-146.23

Currently on Backorder

HD30-24-29E-RS


Product Description

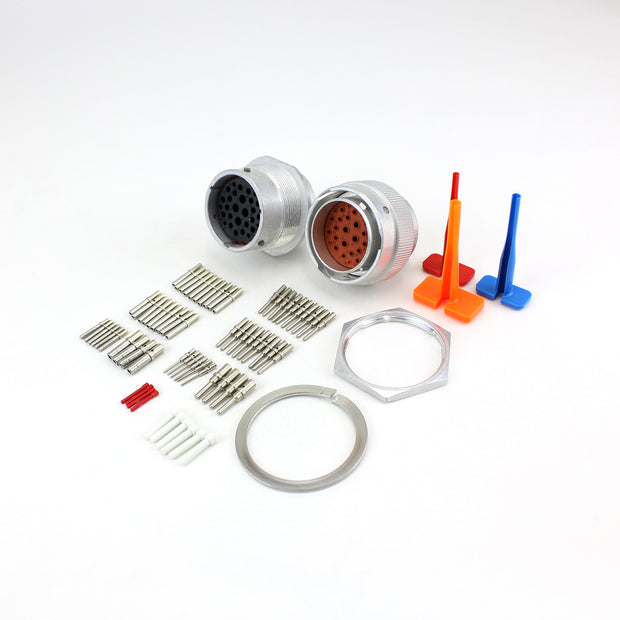

Complete mating kit with housings, contacts, sealing blanks, mounting hardware and contact removal tooling.

RS: Receptacle (panel) housing has Socket-contacts.

Kit Contains:

Qty Code Description
1 0411-240-2005 Removal Tool #20 RED N, ET-Seals 16-22AWG
1 0411-336-1605 Removal Tool #16 BLU ET-Seals 16-20AWG
1 0411-337-1205 Removal Tool #12 ORG ET-Seals 12-14AWG
4 0413-204-2005 Sealing Plug #20 RED
19 0460-202-16141 Contact Pin #16 Ni. Crimp 0.5-1.5mm2 13A
6 0460-202-20141 Contact Pin #20 Ni. Crimp 0.2-0.5mm2 7.5A
4 0460-204-12141 Contact Pin #12 Ni. Crimp 2.0-3.0mm2 25A
19 0462-201-16141 Contact Socket #16 Ni. Crimp 0.5-1.5mm2 13A
6 0462-201-20141 Contact Socket #20 Ni. Crimp 0.2-0.5mm2 7.5A
4 0462-203-12141 Contact Socket #12 Ni. Crimp 2.0-3.0mm2 25A
1 112263-90 HD30 Nut Shell Size 24 Metal
1 112264 HD30 Lockwasher S-Steel Shell Size 24
6 114017 Sealing Plug #12, #16 WHT
1 HD34-24-29SE HD30 Panel Receptacle 29 Way Socket-Contacts
1 HD36-24-29PE HD30 CBL Plug 29 Way Pin-Contacts
Delivery & Returns
  • Stock items ships in 24hrs
  • Fully insured package
  • We ship Australia wide
  • 30 day returns - buyer pays postage
Specification
Amperage Rating: 20.1 - 30.0A
Contact Plating: Nickel
Housing Material: Aluminium
Wire Size (mm²): 2.01 - 5.00mm2
