Deutsch

Deutsch HD30 Kit 47 Way E-Seal RP 0.5/1.5mm2 IP67 7.5A, 13A

Regular price
$165.56 Save $-165.56

Currently on Backorder

HD30-24-47E-RP


Product Description

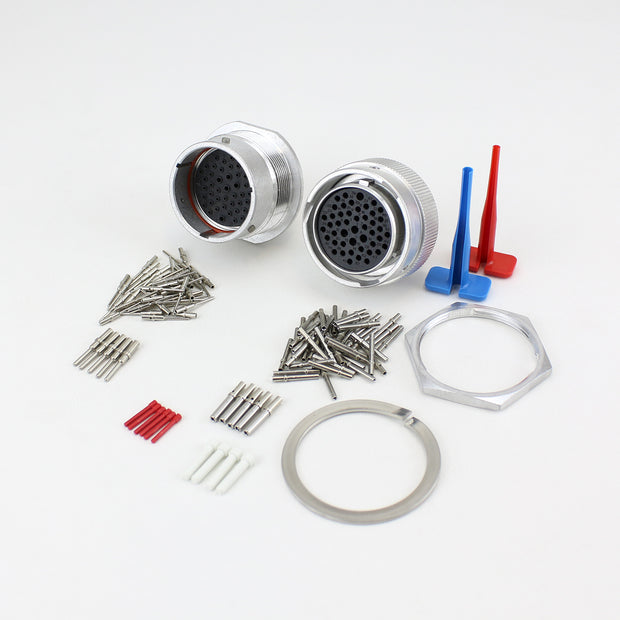

Complete mating kit with housings, contacts, sealing blanks, mounting hardware and contact removal tooling.

RP: Receptacle (panel) housing has Pin-contacts.

Kit Contains:

Qty Code Description
1 0411-240-2005 Removal Tool #20 RED N, ET-Seals 16-22AWG
1 0411-336-1605 Removal Tool #16 BLU ET-Seals 16-20AWG
6 0413-204-2005 Sealing Plug #20 RED
42 0460-202-20141 Contact Pin #20 Ni. Crimp 0.2-0.5mm2 7.5A
5 0460-215-16141 Contact Pin #16 Ni. Crimp 1.0-2.0mm2 13A GRN
42 0462-201-20141 Contact Socket #20 Ni. Crimp 0.2-0.5mm2 7.5A
5 0462-209-16141 Contact Socket #16 Ni. Crimp 1.0-2.0mm2 13A GRN
1 112263-90 HD30 Nut Shell Size 24 Metal
1 112264 HD30 Lockwasher S-Steel Shell Size 24
4 114017 Sealing Plug #12, #16 WHT
1 HD34-24-47PE HD30 Panel Receptacle 47 Way Pin-Contacts
1 HD36-24-47SE HD30 CBL Plug 47 Way Socket-Contacts
Delivery & Returns
  • Stock items ships in 24hrs
  • Fully insured package
  • We ship Australia wide
  • 30 day returns - buyer pays postage
Specification
Amperage Rating: 10.1 - 20.0A
Contact Plating: Nickel
Housing Material: Aluminium
Wire Size (mm²): 0 - 1.50mm2
