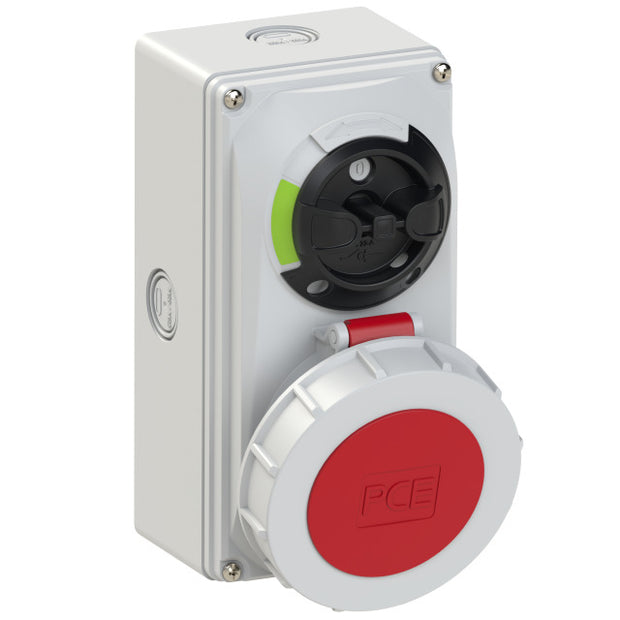

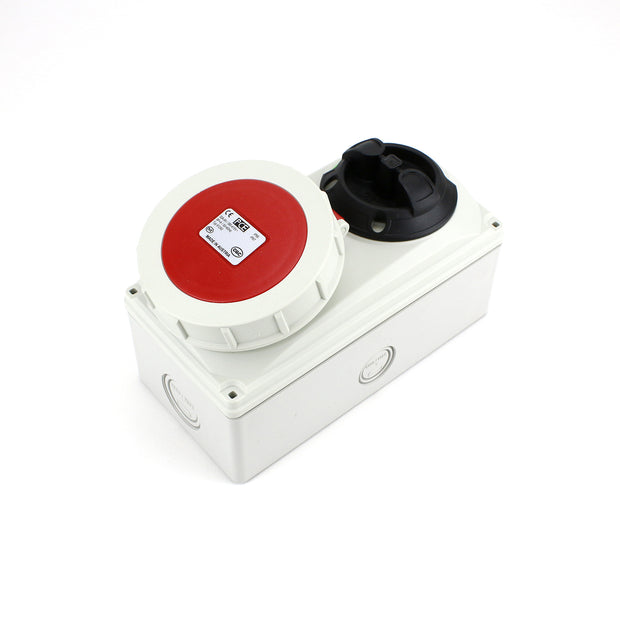

PCE CEE IEC 60309 Wall Socket Outlet 4 Way RED IP67 32A 400V 6H Switched Interlock with Knock-outs
PCE CEE IEC 60309 Wall Socket Outlet 4 Way RED IP67 32A 400V 6H Switched Interlock with Knock-outs
PCE

PCE CEE IEC 60309 Wall Socket Outlet 4 Way RED IP67 32A 400V 6H Switched Interlock with Knock-outs

Regular price
$145.18 Save $-145.18

In stock

61242-6K


Product Description

CTALS | PCE Authorised Australian Distributor

CEE-switched interlocked socket compact 32A 4p 6h IP66/IP67 knock-out

  • Housing material: PA6 + PC/ABS
  • Rated current: 32A
  • Number of poles: 4 (3P+PE)
  • Clock-position: 6h
  • Rated voltage/frequency: 380-415V~ / 50+60Hz
  • Contacts: brass nickel plated
  • Connection technology: screw terminals
  • Wall mounting housing with knock-out, mechanical interlock
  • Switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
  • IP protection class: IP66/IP67

Mating Parts

  • 0242-6 Plug

 EN 60309-2

Delivery & Returns
  • Stock items ships in 24hrs
  • Fully insured package
  • We ship Australia wide
  • 30 day returns - buyer pays postage
Specification
Amperage Rating: 30.1 - 50.0A
Colour: Grey
Contact Gender: Socket
Contact Plating: Nickel
Contact Style: Screw
Contacts Supplied: Yes
Insert Rot./Keying: 3h
Mounting Type: Panel
Oper. Volt (AC): 440
Positions: 4
Sealing: IP67
Wire Size (mm²): 5.01 - 20.00mm2
