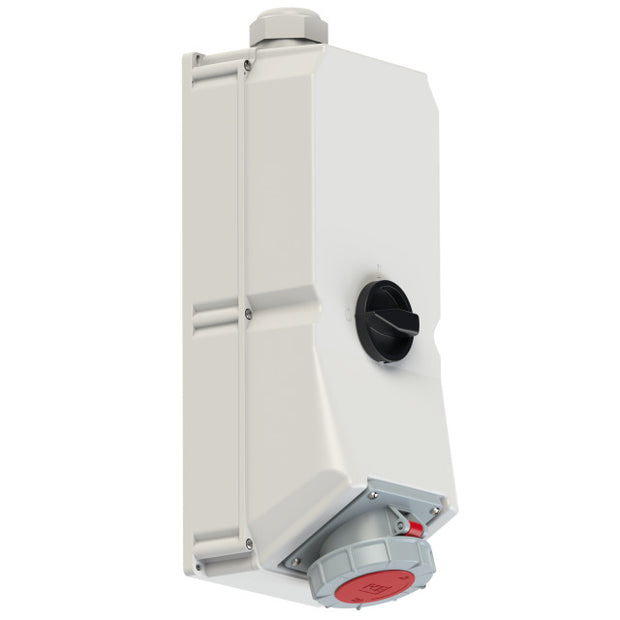

PCE CEE IEC 60309 Wall Socket Outlet 5 way RED IP67 125A 400V Switched Interlocked
PCE CEE IEC 60309 Wall Socket 5 way Socket-Contacts RED IP67 125A 400V Switched - Connector-Tech ALS
PCE

PCE CEE IEC 60309 Wall Socket Outlet 5 way RED IP67 125A 400V Switched Interlocked

Regular price
$1,454.14 Save $-1,454.14

In stock

9755100


Product Description

CTALS | PCE Authorised Australian Distributor

CEE-switched interlocked socket 125A 5p 6h IP67

  • Housing material: PC/ABS
  • Rated current: 125A
  • Number of poles: 5 (3P+N+PE)
  • Clock-position: 6h
  • Rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
  • Contacts: brass, with lamellar spring (CuBe)
  • Connection technology: screw terminals
  • Wall mounting, mechanical interlock
  • Switch: ON/OFF PCE-Merz ML3; EN 60947-3; AC22A (AC3, 690V, 3~, 45kW)
  • Cable entry: top
  • IP protection class: IP67

Mating Parts

 EN 60309-2

Delivery & Returns
  • Stock items ships in 24hrs
  • Fully insured package
  • We ship Australia wide
  • 30 day returns - buyer pays postage
Specification
Amperage Rating: 50.1 - 150.0A
Wire Size (mm²): 20.1 - 50.00mm2
