Yeonhab YH5015 CBL Plug 4 Way 2x#16, 2x#12 Sockets GRN Zn. SR Clamp
Yeonhab YH5015 CBL Plug 4 Way 2x#16, 2x#12 Sockets GRN Zn. SR Clamp
Yeonhab

Yeonhab YH5015 CBL Plug 4 Way 2x#16, 2x#12 Sockets GRN Zn. SR Clamp

Regular price
$24.05 Save $-24.05

In stock

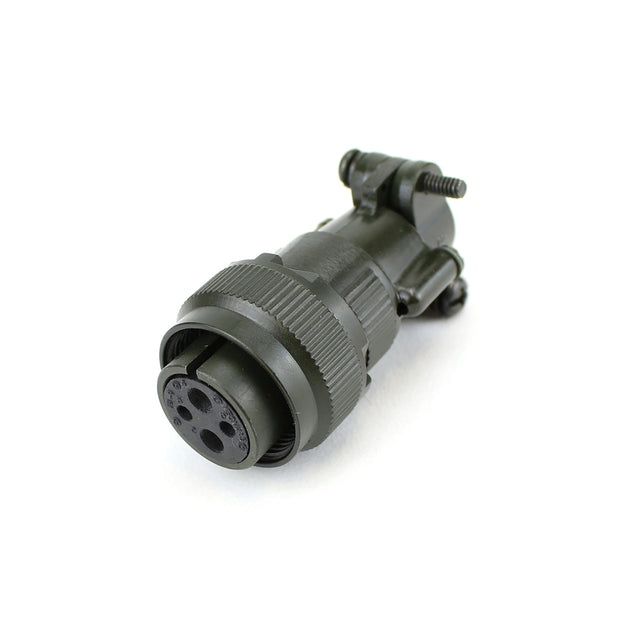

01 MS3106F16-9S


Product Description

YH3106F16-9S Commercial version of MIL-DTL-5015 part number MS3106F16-9S.

  • 500 Mating Cycles
  • -55 to 125 Deg C Operating Temperature
  • #12 Contacts
    • 12-14AWG (MIL-W-5086)
    • 2.0-3.0mm2
    • 2.9-4.3mm Insulation OD
    • 3.0mm Diameter Solder Pot
    • 23A Rated Current
  • #16 Contacts
    • 16-22AWG (MIL-W-5086)
    • 0.2-1.5mm2
    • 1.7-3.3mm Insulation OD
    • 2.0mm Diameter Solder Pot
    • 13A Rated Current
Delivery & Returns
  • Stock items ships in 24hrs
  • Fully insured package
  • We ship Australia wide
  • 30 day returns - buyer pays postage
Specification
Amperage Rating: 20.1 - 30.0A
Backshell Type: Straight, Cable Clamp
Colour: Olive Drab
Contact Gender: Socket
Contact Plating: Silver
Contact Style: Solder
Contacts Supplied: Yes
Housing Gender: Plug
Housing Material: Aluminium Alloy

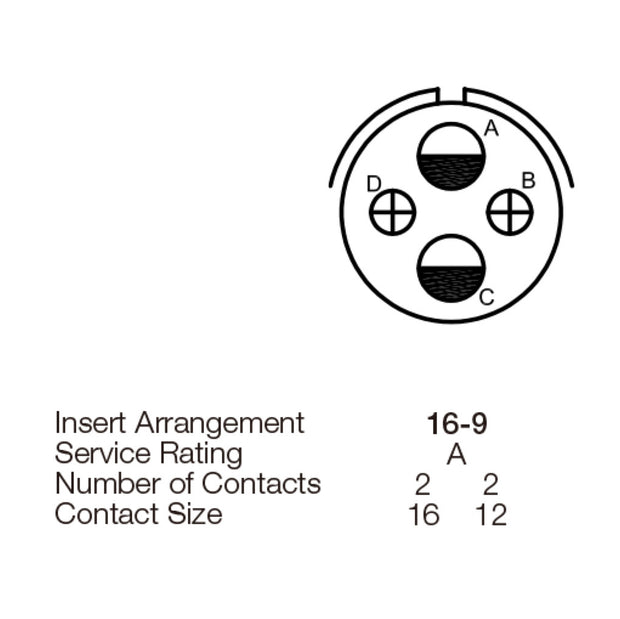

Insert Arrangement: 16-9
Military Spec.: MIL-DTL-5015
Mounting Type: Cable
Positions: 4
Sealing: Meets IP67
Shell Plating: Cadmium
Wire Size (AWG): 16, 12
Wire Size (mm²): 2.01 - 5.00mm2
