CEE SERIES IEC 60309 PLUGS AND SOCKETS

IEC 60309 is the international standard for plugs, socket outlets and couplers used for industrial purposes.

CEE Series IEC 60309 Connectors

CEE industrial plugs and sockets are made to meet the international standards IEC60309, EN60309 & VDE0623. Designed for use with single phase and multi-phase applications, this range of connectors are popular in areas such as the entertainment industry, construction, agriculture and mining for both power and lighting.

IEC 60309 connectors are specifically colour coded along with a key system to prevent confusion about the appropriate connection. The position of the earth pin varies according to the rated operating voltage and polarity. This makes it impossible to connect plugs and sockets of different current ratings and voltage.

Features of CEE 60309 Connectors:

  • Rugged corrosion and chemical-resistant plastic construction
  • Up to IP67 environmental protection (depending on the version)
  • 16 to 125 Amps (depending on the version)
  • Temperature resistance from –25°C to +80°C
  • Short term temperature (1 hour) +100°C
  • Contacts manufactured from a copper-zinc alloy for superior performance
  • Pilot contact for currents of 63 and 125 Amps is an auxiliary contact
  • Very wide variety of connectors available for industrial use
  • Made to high safety and quality standards


    CEE Series (IEC 60309) Manufacturers

    PCE Logo
    Product Filter
    • 5.01 - 20.00mm2
    PCE CEE IEC 60309 Panel Socket Outlet 3 way Socket-Contacts BLU IP44 32A 230V - Connector-Tech ALS
    PCE CEE IEC 60309 Panel Socket Outlet 3 way BLU IP44/IP54 32A 230V 75x75/60x60mm
    PCE
    MPN : 323-6F7
    $17.54
    +GST
    PCE CEE IEC 60309 CBL Ext. Socket 3 way Socket-Contacts BLU IP44 32A 230V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Ext. Socket 3 way BLU IP44/IP54 32A 230V
    PCE
    MPN : 223-6
    $18.63
    +GST
    PCE CEE IEC 60309 CBL Plug 3 way Pin-Contacts BLU IP44 32A 230V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Plug 3 way BLU IP44/IP54 32A 230V
    PCE
    MPN : 023-6
    $14.50
    +GST
    PCE CEE IEC 60309 CBL Ext. Socket 5 way Socket-Contacts RED IP44 32A 400V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Ext. Socket 5 way RED IP44/IP54 32A 400V
    PCE
    MPN : 225-6
    $21.14
    +GST

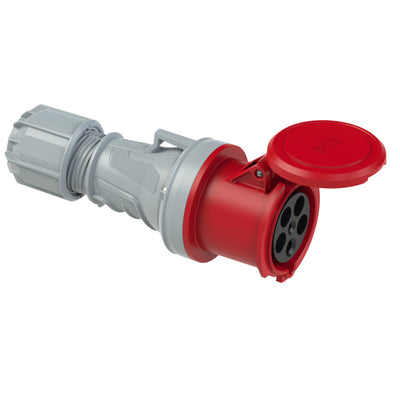

    PCE CEE IEC 60309 CBL Ext. Socket 5 way Socket-Contacts RED IP67 63A 400V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Ext. Socket 5 way RED IP67 63A 400V
    PCE
    MPN : 235-6
    $104.25
    +GST

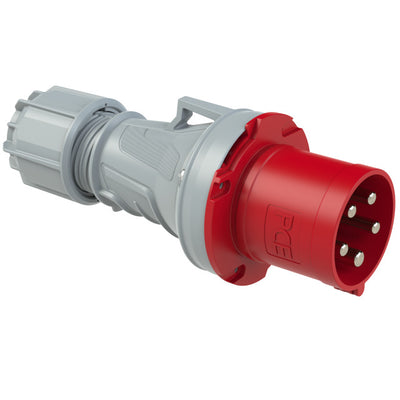

    PCE CEE IEC 60309 CBL Plug 5 way Pin-Contacts RED IP67 63A 400V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Plug 5 way RED IP67 63A 400V
    PCE
    MPN : 035-6
    $81.55
    +GST
    PCE CEE IEC 60309 CBL Plug 4 way RED IP67 32A 440V Container
    PCE CEE IEC 60309 CBL Plug 4 way RED IP67 32A 440V Container
    PCE
    MPN : 0242-3V
    $36.47
    +GST
    PCE CEE IEC 60309 CBL Ext. Socket 5 way Socket-Contacts RED IP67 32A 400V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Ext. Socket 5 way RED IP67 32A 400V
    PCE
    MPN : 2252-6
    $37.70
    +GST
    PCE CEE IEC 60309 Wall Socket Outlet 4 way RED IP67 32A 440V Switched Interlock Container - Connector-Tech ALS
    PCE CEE IEC 60309 Wall Socket Outlet 4 Way RED IP67 32A 440V Switched Interlock Container
    PCE
    MPN : 75242-3
    $180.37
    +GST
    PCE CEE IEC 60309 Wall Socket Outlet 3 way BLU IP67 63A 230V Switched Interlock
    PCE CEE IEC 60309 Wall Socket Outlet 3 way BLU IP67 63A 230V Switched Interlock
    PCE
    MPN : 75332-6
    $416.90
    +GST
    PCE CEE IEC 60309 CBL Ext. Socket 3 way Socket-Contacts BLU IP67 63A 230V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Ext. Socket 3 way BLU IP67 63A 230V
    PCE
    MPN : 233-6
    PCE CEE IEC 60309 CBL Plug 3 way Pin-Contacts BLU IP67 63A 230V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Plug 3 way BLU IP67 63A 230V
    PCE
    MPN : 033-6
    $74.17
    +GST
    PCE CEE IEC 60309 Wall Socket Outlet 4 way Socket-Contacts RED IP67 32A 440V - Connector-Tech ALS
    PCE CEE IEC 60309 Panel Socket Outlet 4 way RED IP67 32A 440V 75x75/60x60mm Container
    PCE
    MPN : 3242-3V
    $24.46
    +GST
    PCE CEE IEC 60309 Panel Socket Outlet 5 way Socket-Contacts RED IP67 63A 400V 106x110 - Connector-Tech ALS
    PCE CEE IEC 60309 Panel Socket Outlet 5 way RED IP67 63A 400V 106x110/90x90mm
    PCE
    MPN : 435-6FD
    $66.50
    +GST
    PCE CEE IEC 60309 CBL Ext. Socket 4 way RED IP67 32A 440V Container
    PCE CEE IEC 60309 CBL Ext. Socket 4 way RED IP67 32A 440V Container
    PCE
    MPN : 2242-3V
    $38.74
    +GST
    PCE CEE IEC 60309 CBL Plug 5 way Pin-Contacts RED IP67 32A 400V - Connector-Tech ALS
    PCE CEE IEC 60309 CBL Plug 5 way RED IP67 32A 400V
    PCE
    MPN : 0252-6
    $27.99
    +GST
    PCE CEE IEC 60309 CBL Plug 5 way RED IP44/IP54 32A 400V
    PCE CEE IEC 60309 CBL Plug 5 way RED IP44/IP54 32A 400V
    PCE
    MPN : 025-6
    $17.86
    +GST
    Sold Out
    PCE CEE IEC 60309 Panel Plug Inlet 5 Way RED IP67 63A 400V 6H 100x100/80x80mm
    PCE
    MPN : 635-6
    PCE CEE IEC 60309 Wall Plug Inlet 5 way Pin-Contacts RED IP67 63A 400V
    PCE CEE IEC 60309 Wall Plug Inlet 5 way Pin-Contacts RED IP67 63A 400V
    PCE
    MPN : 535-6
    $126.31
    +GST
    PCE CEE IEC 60309 Plug Cover 63A IP67
    PCE CEE IEC 60309 Plug Cover 63A IP67
    PCE
    MPN : TS7632G
    $6.79
    +GST
    Sold Out
    PCE CEE IEC 60309 Wall Socket Outlet 5 way RED IP67 63A 400V Switched Interlock Pilot Contacts
    PCE CEE IEC 60309 Wall Socket Outlet 5 way RED IP67 63A 400V Switched Interlock Pilot Contacts
    PCE
    MPN : 753525-6
    PCE CEE IEC 60309 Wall Socket Outlet 4 Way RED IP67 32A 400V 6H Switched Interlock with Knock-outs
    PCE
    MPN : 61242-6K
    $132.32
    +GST
    PCE CEE IEC 60309 CBL Plug 4 way BLK IP67 32A 500V
    PCE CEE IEC 60309 CBL Plug 4 way BLK IP67 32A 500V
    PCE
    MPN : 0242-7
    $39.64
    +GST
    PCE CEE IEC 60309 Panel Socket Outlet 5 way RED IP67 63A 400V 100x100/80x80mm
    PCE CEE IEC 60309 Panel Socket Outlet 5 way RED IP67 63A 400V 100x100/80x80mm
    PCE
    MPN : 335-6
    $82.26
    +GST
    Sold Out
    PCE CEE IEC 60309 Panel Socket Outlet 5 way RED IP67 32A 400V 75x75/60x60mm
    PCE CEE IEC 60309 Panel Socket Outlet 5 way RED IP67 32A 400V 75x75/60x60mm
    PCE
    MPN : 3252-6
    Sold Out
    PCE CEE IEC 60309 CBL Ext. Socket 3 way BLU IP67 63A 230V Pilot Contacts
    PCE CEE IEC 60309 CBL Ext. Socket 3 way BLU IP67 63A 230V Pilot Contacts
    PCE
    MPN : 2335-6
    PCE CEE IEC 60309 Wall Socket Outlet 5 way RED IP67 63A 400V Pilot Contacts
    PCE CEE IEC 60309 Wall Socket Outlet 5 way RED IP67 63A 400V Pilot Contacts
    PCE
    MPN : 1355-6
    $122.24
    +GST
    PCE CEE IEC 60309 Wall Socket Outlet 5 way RED IP67 63A 400V Switched Interlock - Connector-Tech ALS
    PCE CEE IEC 60309 Wall Socket Outlet 5 way RED IP67 63A 400V Switched Interlock
    PCE
    MPN : 75352-6
    $434.98
    +GST
